Product Description
These Zhengzhou Greatwall GR series cylindrical glass reactor are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features of 50L Cylindrical Glass Reactor:
- Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
- All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
- Adjustable stirring rate provides great torque or high speed.
- Patented PTFE stirring rod bearing for reliable and quiet operation.
- Optional multi-layer stirring blades for optimal reaction results.
- Wide range of temperature operations, from -80°C to 200°C.
- Large condenser cooling surface for exceptional condensation performance.
- Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
- Easily visual operation with digital speed and temperature displays.
- Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
- One year warranty and lifetime parts, service, and support.
Specifications of Cylindrical Glass Reactor:
| Model | GR-5 | GR-10 | GR-20 | GR-50 | GR-100 |
| Power(W) | 90 | 140 | 250 |
| Explosion-proof motor power(W) | 180 | 370 |
| Stirring Speed(rpm) | 50~500 |
| Max.torque(N`m) | 0.6 | 0.95 | 1.7 |
| Material capacity(L) | 5 | 10 | 20 | 50 | 100 |
| Interlining cover capacity(L) | 1.5 | 3 | 6 | 16 | 30 |
| The height of the discharge valve from the ground(mm) | 360 | 380 | 335 | 320 | 340 |
| Overall Height(mm) | 1780 | 1780 | 1910 | 2050 | 2360 |
| Reactor Material | High Borosilicate Glass 3.3 |
| Temp. ssensor material | Stainless steel claded by fluorine, double anti-corrosion |
| Temp. Range | -80~200℃ |
| Speed Control Method | Frequency Speed Control |
| Affordable jacket temp. difference between inside and outside | 60℃(three layer), 110℃(double layer) |
| Inlet/outlet liquid circulation nozzle | DN15 |
| Power Supply(V/Hz) | Single phase 220V/50,60Hz |
|
|

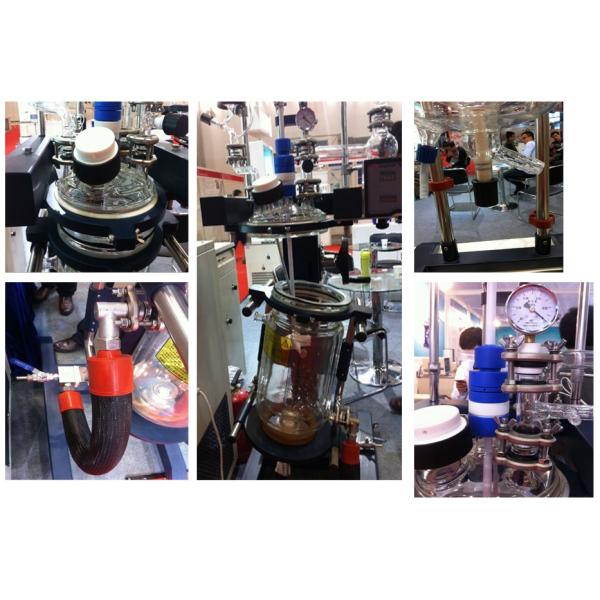

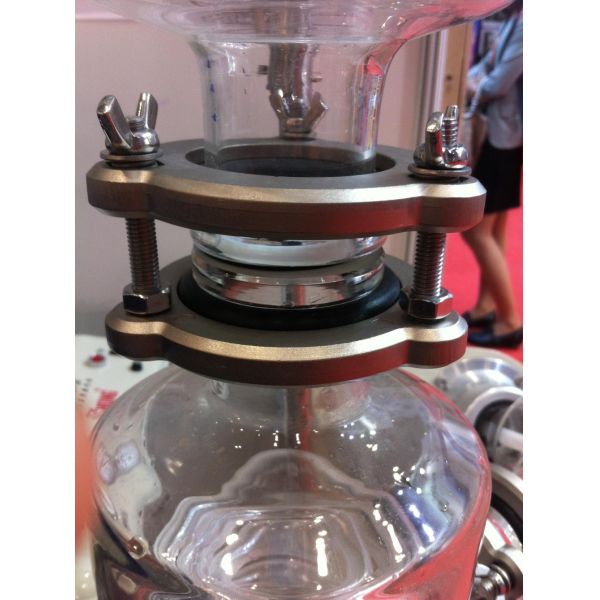

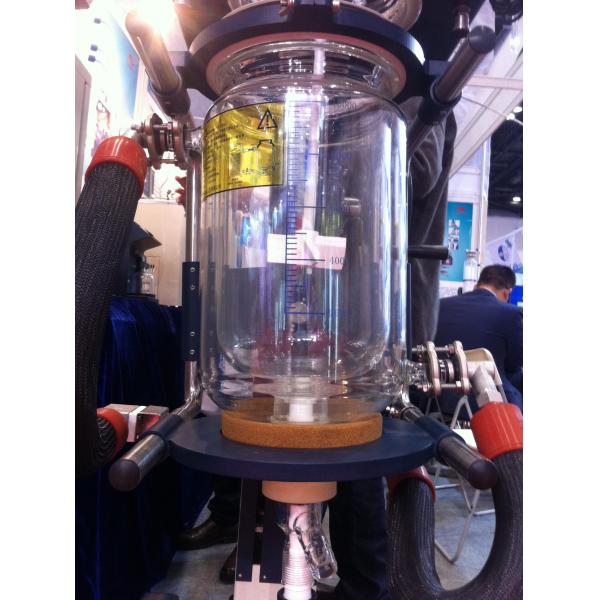

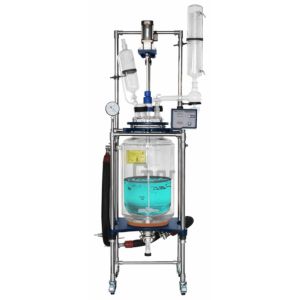

Chinese Gold Manufacturer Supply GR-50 50L Cylindrical Glass Reactor Images
|
