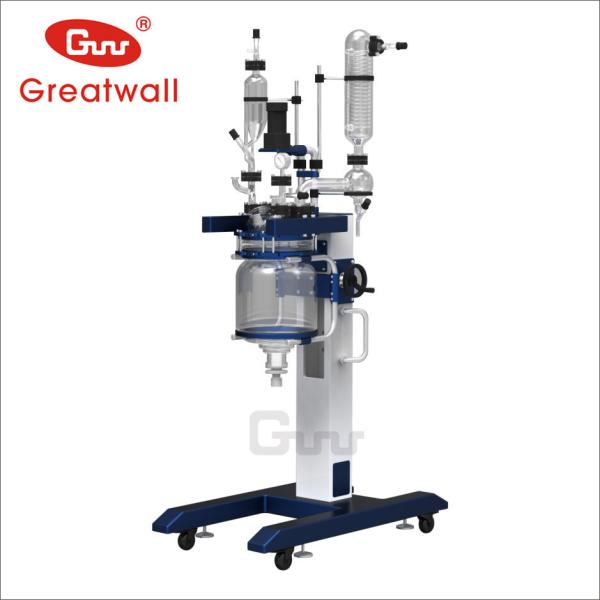

Zhengzhou Greatwall 10L/20L/50L elevating glass filter reactor

Model

GRL-10

GRL-20

GRL-50

Effective capacity (L)

10

20

50

Interlining cover capacity (L)

3

6

16

Jacket heat exchange area (m²)

0.22

0.32

0.65

Condenser heat exchange area(m²)

0.2

0.3

0.3

Reaction kettle material

High borosilicate glass 3.3

Kettle body tolerable temperature (℃)

-80~200

Kettle body resistance to temperature difference(℃)

90

Operating pressure(MPa)

Vacuum or normal pressure

Motor

Power(W)

90

90

140

Power(W)

180(Explosion-proof)

Speed control method

Frequency speed control

Stirring speed(rpm)

50~500

Kettle cover open mouth: 6

Stirring mouth

Stirring mouth

Stirring mouth

Senser mouth

Senser mouth

Senser mouth

Condenser connecting mouth

Condenser connecting mouth

Condenser connecting mouth

Liquid charging mouth

Liquid charging mouth

Liquid charging mouth

constant pressure funnel connecting mouth

constant pressure funnel connecting mouth

constant pressure funnel connecting mouth

Solid charging mouth

Solid charging mouth

Solid charging mouth

Inlet/outlet liquid circulation nozzle

DN15

Overall power(V/Hz)

220/50

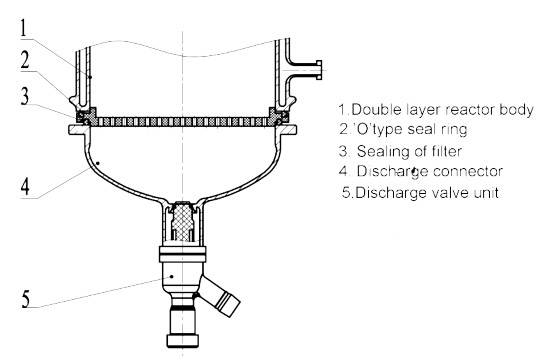

Discharge valve

The height of the discharge valve from ground: 590mm in maximum

The height of the discharge valve from ground: 585mm in maximum

The height of the discharge valve from ground: 540mm in maximum

Temperature sensor material

Stainless steel claded by fluorine, double anti-corrosion

Stirring

Rotary vane impeller, mixer shaft is stainless steel claded by fluorine

Dimensions of the main machine (mm)

1100L×660W×1990H
