SPECIFICATIONS:
1L, 2L, 3L, 5L,10L, 20L, 50L,100L
Usage:
Reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials. It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.
Features:
1.High borosilicate glass has good physical and chemical properties.
2.Can be used in wide temperature range from high temperature (200℃) to low temperature (-80℃).
3. Can work in constant pressure and vacuum, vacuum degree is below 0.095MPa in quiet situation.
4. Digital display of mixing speed, frequency conversion, and constant speed mixing system, work steadily.
5. PTFE mixing propeller (paddle).
6. Corrosion resistant discharge valve is without dead space design.
7. The cooling or heating solution in the interlayer can be completely removed after reaction.
2L Double-layer Elevating Glass Reactor Specifications:
| Model | GR-2L |
| Stirring Speed(rpm) | 500~600 |
| Max.torque(N`m) | 300 |
| Material capacity(L) | 2 |
| Interlining cover capacity(L) | 0.6 |
| Reactor Material | 3.3 High borosilicate glass |
| Temp. sensor material | Stainless steel claded by fluorine,double anti-corrosion |
| Temp. Range | -80~230℃ |
| Maximum viscosity | 100000mpas |
| Power of stirrer | 80W |
| Power Supply(V/Hz) | 220V/50Hz |
5L,10L,20L,50L,100L Double-layer jacket glass reactor Specifications:
| Model | GR-5L | GR-10L | GR-20L | GR-50L | GR-100L |
| Power(W) | 90 | 140 | 250 |
| Stirring Speed(rpm) | 50~500 |
| Max.torque(N`m) | 132 | 200 | 273 | 378 |
| Material capacity(L) | 5 | 10 | 20 | 50 | 100 |
| Interlining cover capacity(L) | 1.5 | 3 | 6 | 16 | 30 |
| The height of the discharge valve from the ground(mm) | 360 | 380 | 335 | 320 | 340 |
| Overall Height(mm) | 1780 | 2000 | 2030 | 2240 | 2480 |
| Reactor Material | High Borosilicate Glass |
| Temp. ssensor material | Stainless steel claded by fluorine, double anti-corrosion |
|
|
|

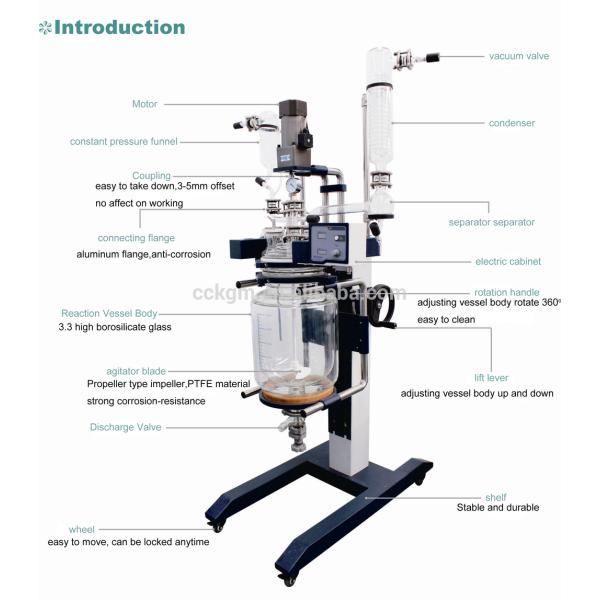

1L/2L/3L/5L/10L/20L/50L/100L borosilicate glass bioreactor price Images
|
