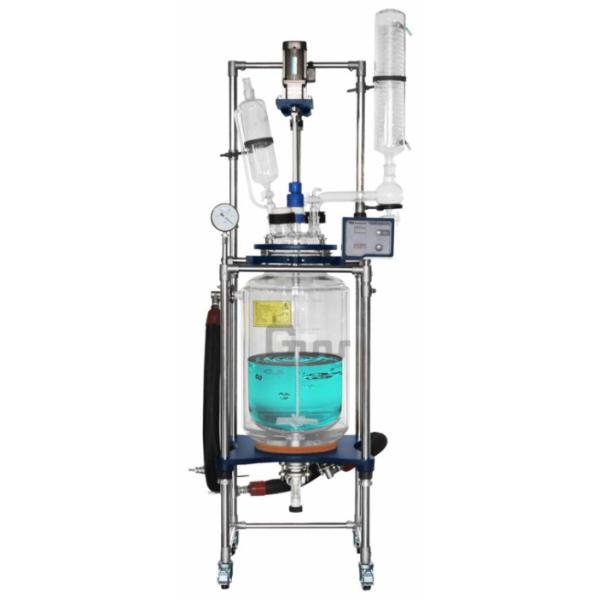

Zhengzhou Greatwall manufacturer supply GR-100 100L glass reactor

These Zhengzhou Greatwall GR series glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features of Jacketed Double-layer Glass Reactor:

• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Optional multi-layer stirring blades for optimal reaction results.
• Wide range of temperature operations, from -80°C to 200°C.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
• One year warranty and lifetime parts, service, and support.

Specifications of Double-layer Glass Reactor:

Model	GR-5	GR-10	GR-20	GR-30	GR-50	GR-100
Power(W)	90				140	250
Explosion-proof motor power(W)	180					370
Stirring Speed(rpm)	50~500
Max.torque(N`m)	0.6				0.95	1.7
Material capacity(L)	5	10	20	30	50	100
Interlining cover capacity(L)	1.5	3	6	10	16	30
The height of the discharge valve from the ground(mm)	360	380	335	310	320	340
Overall Height(mm)	1780	1780	1910	2030	2050	2360
Reactor Material	High Borosilicate Glass 3.3
Temp. ssensor material	Stainless steel claded by fluorine, double anti-corrosion
Temp. Range	-80~200℃
Speed Control Method	Frequency Speed Control
Affordable jacket temp. difference between inside and outside	60℃(three layer), 110℃(double layer)
Inlet/outlet liquid circulation nozzle	DN15
