Professional manufacturer supply 1L-100L high borosilicate glass reactor

Place of Origin : China

Brand Name : Greatwall

Certification : ISO 9001:2008

Model Number : GR Series

MOQ : 1 set

Price : US $2,157 - 4,651 / Set

Packaging Details : Plywood box

Delivery Time : within 10 working days after receiving the payment

Payment Terms : T/T

Supply Ability : 300 sets/month

Contact Now

1L-100L High Borosilicate Glass Reactor(One year warranty)

Product Description

These Zhengzhou Greatwall GR series high borosilicate glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Professional manufacturer supply 1L-100L high borosilicate glass reactor

Features of High Borosilicate Glass Reactor:

Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -80°C to 200°C.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
One year warranty and lifetime US-based parts, service, and support.

Specifications of High Borosilicate Glass Reactor 1L/2L/3L:

Model	Interlining cover capacity(L)	Stirring Speed(rpm)	Max torque(Ncm)	Power Supply(V/Hz)	Operating pressure(Mpa)
GR-1	0.3	50~1000	300	1~,220V,50/60Hz	Vacuum or normal pressure
GR-2	0.6	50~1000	300	1~,220V,50/60Hz	Vacuum or normal pressure
GR-3	0.9	50~1000	300	1~,220V,50/60Hz	Vacuum or normal pressure

Specifications of High Borosilicate Glass Reactor 5L/10L/20L/30L/50L/80L/100L:

Model	GR-5	GR-10	GR-20	GR-30	GR-50	GR-80	GR-100
Power(W)	90				140	250
Explosion-proof motor power(W)	180					370
Stirring Speed(rpm)	50~500
Max.torque(N`m)	0.6				0.95	1.7
Material capacity(L)	5	10	20	30	50	80	100
Interlining cover capacity(L)	1.5	3	6	10	16	24	30

Quality Professional manufacturer supply 1L-100L high borosilicate glass reactor for sale

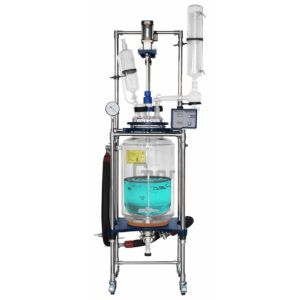

Professional manufacturer supply 1L-100L high borosilicate glass reactor Images
