SPECIFICATIONS:
1L, 2L, 3L, 5L,10L,20L,30L,50L,80L,100L double layer/three layer high borosilicate glass 3.3 jacketed reactor
1L-3L thermal jacketed double layer / three layer glass reactor
5L-100L thermal jacketed double layer / three layer glass reactor
Brief introduction of 1L-100L glass reactors:
Reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials.
1.Digital display, show vacuum and pressure in the reactor;
2.The pressure inside the reactor is -0.1MPa~0;
3.PTFE material cock emptying valve, with the package fluorine 'O' ring.
Application fields of 1L-100L glass reactors:
It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials.
The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump(vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.
Characteristics of 1L-100L glass reactors:
1.High borosilicate glass has good physical and chemical properties.
2.Can be used in wide temperature range from high temperature (200℃) to low temperature (-80℃).
3. Can work in constant pressure and vacuum, vacuum degree is below 0.095MPa in quiet situation.
4. Digital display of mixing speed, frequency conversion, and constant speed mixing system, work steadily.
5. PTFE mixing propeller (paddle).
6. Corrosion resistant discharge valve is without dead space design.
7. The cooling or heating solution in the interlayer can be completely removed after reaction.
Technical data of 1L-3L glass reactors:
| Model | Interlining cover capacity(L) | Stirring Speed(rpm) | Max torque(Ncm) | Power Supply(V/Hz) | Dimensions | Operating pressure(Mpa) |
| GR-1L | 0.3 | 50~1000 | 300 | 1~,220V,50/60Hz | 41*42*102CM | Vacuum or normal pressure |
| GR-2L | 0.6 | 50~1000 | 300 | 1~,220V,50/60Hz | 41*42*102CM | Vacuum or normal pressure |
| GR-3L | 0.9 | 50~1000 | 300 | 1~,220V,50/60Hz | 41*42*102CM | Vacuum or normal pressure |
Technical data of 5L-100L glass reactors:
| Model |
|
|

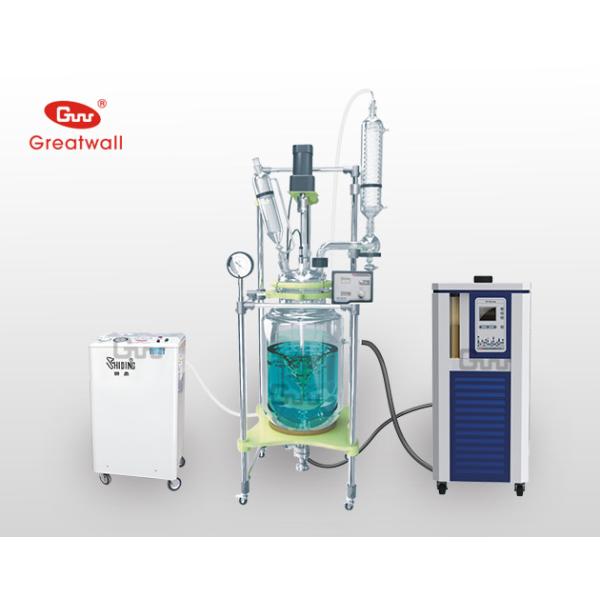

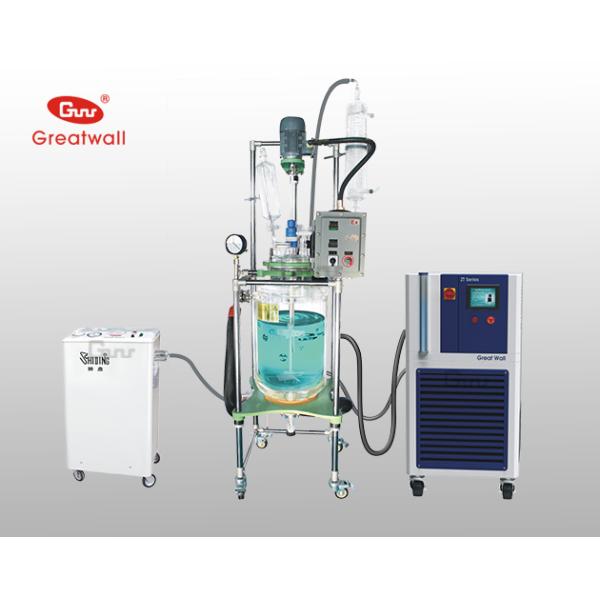

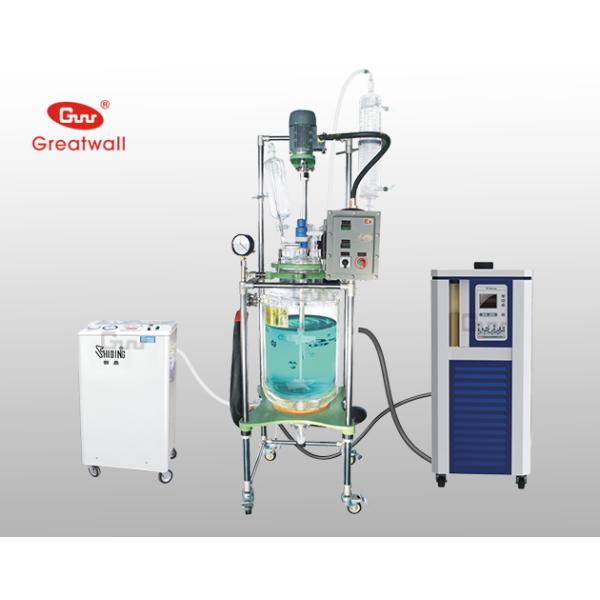

Chemical reactor entire system Images
|
