I.Characteristics of Uses:

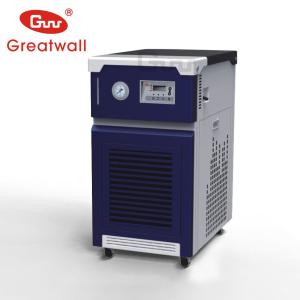

Model:DL10-1000
It is suitable for measuring chemical,biological and physical experiment in low temperature,it it is used for grouping instrument of pharmaceutical health ,foodstuff ,chemistry ,and university or academic institution, includingreaction vessel rapid cooling, low temperature moulds ,frozen processing fixture and low testing machine cooling. Can be used attached to Rotary Evaporator, Reaction Kettle, etc...
Application Fields:
1.Chemistry,biological area:atomic absorption ICP,ICP-MS,MR,CCD,biological fermenter, Chemical reactor, synthetic tank and so on.
2.Material area:SEM TEM X ray scattering ,X fluorescence ,magnetron sputtering vacuum coating machine laser.
For Example:
Chiller(DL10-1000) / 5L Rotary Evaporator(R-1005) / Diaphragm vacuum pump(MP-401)
II.Specifications:
Model | DL-400 | DL10-1000 | DL10-2000 | DL10-3000 | DL10-6000 |
Temperature range/℃ | -15~25 | -10~25 |
power supply (V/Hz) | 220V/50Hz | 380V/50Hz |
Colling capacity (W) | 400W@0℃ | 1000W@15℃ | 2000W@15℃ | 3000W@15℃ | 6000W@15℃ |
Pump flow | 17L/Min | 30L/Min | 30L/Min | 30L/Min | 40L/Min |
Lift | 0.2bar | 1-10bar | 1-10bar | 1-10bar | 1-10bar |
Dimensions (mm)
L×W×H(mm) | 430*245*550 | 675*426*695 | 675*456*775 | 740*490*830 | 1020*635*1030 |
| Suit for 500ml~2L Rotary Evaporator | Suit for 5L Rotary Evaporator | Suit for 10L Rotary Evaporator | Suit for 20L Rotary Evaporator | Suit for 50L Rotary Evaporator |
III. Services:
1 year warranty, timely supply capacity,timely troubleshooting and fixing.
IV.Company profile:
Zhengzhou Greatwall Scientific Industrial and Trade Co.,Ltd was established in 1988.
Company products:Multiple-use circulating water vacuum pump, diaphragm vacuum pump, industrial chiller, rotary evaporator,glass reactor, magnetic stirrerand other scientific experimental instrument and industrial related equipments.
OFFICE BLOCK
WORKSHOP
V.Certificate:
ISO 9001:2008
VI.Packaging:
VII.Exhibition
VIII.Contact information:
Product Tags:
|
|
Industrial Chiller DL10-1000 (for/with 5L Rotary Evaporator,Rotavap,Rotovape) Images
|
