I.Characteristics of Uses:

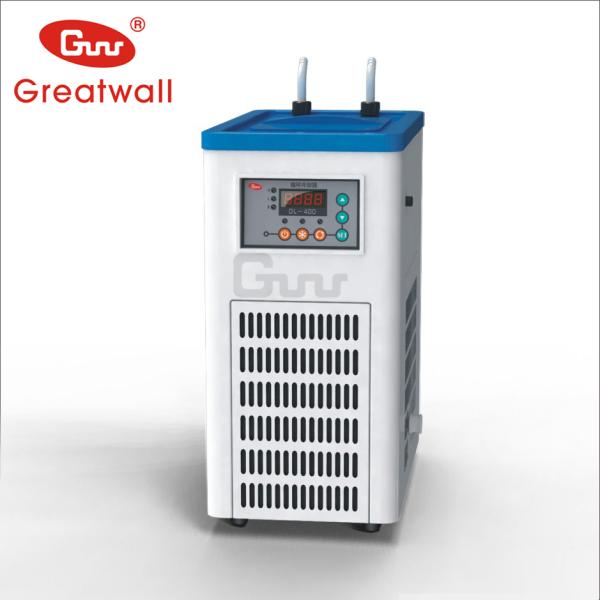

Model:DL-400
Especially for small Rotary Evaporator with professional design and delicate figure which can effectively save space. It can be used on workable or ground.
1.Circulating joint nozzle can rotate all round. Easy to connect with various system.
2.All parts connecting with secondary refrigerant adopt stainless steel(SUS Standard)and macromolecule anti-rot substance.
3.Compressors of international famous brand with high reliability and can work for a long time.
4.Combine with Rotary Evaporator and Vacuum Pumpto form a complete small experimental facility.
For Example:
Chiller(DL-400) / 500ml~2L Rotary Evaporator(R-1001-VN) / Diaphragm vacuum pump(MP-201)
II.Specifications:
Model | DL-400 | DL10-1000 | DL10-2000 | DL10-3000 | DL10-6000 |
Temperature range/℃ | -15~25 | -10~25 |
power supply (V/Hz) | 220V/50Hz | 380V/50Hz |
Colling capacity (W) | 400W@0℃ | 1000W@15℃ | 2000W@15℃ | 3000W@15℃ | 6000W@15℃ |
Pump flow | 17L/Min | 30L/Min | 30L/Min | 30L/Min | 40L/Min |
Lift | 0.2bar | 1-10bar | 1-10bar | 1-10bar | 1-10bar |
Dimensions (mm)
L×W×H(mm) | 430*245*550 | 675*426*695 | 675*456*775 | 740*490*830 | 1020*635*1030 |
| Suit for 500ml~2L Rotary Evaporator | Suit for 5L Rotary Evaporator | Suit for 10L Rotary Evaporator | Suit for 20L Rotary Evaporator | Suit for 50L Rotary Evaporator |
III. Services:
1 year warranty, timely supply capacity,timely troubleshooting and fixing.
IV.Company profile:
Zhengzhou Greatwall Scientific Industrial and Trade Co.,Ltd was established in 1988.
Company products:Multiple-use circulating water vacuum pump, diaphragm vacuum pump, industrial chiller, rotary evaporator,glass reactor, magnetic stirrerand other scientific experimental instrument and industrial related equipments.
OFFICE BLOCK
WORKSHOP
V.Certificate:
ISO 9001:2008
VI.Packaging:
VII.Exhibition
VIII.Contact information:
