Product Description
Features of vacuum distillation ethanol 5l/10l/20l/50l:
Can be used for biological, pharmaceutical, chemical, food and other small scale areas and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
1. Teflon (PTFE) and fluorine rubber dual rotating seal.
2. A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
3. Water/oil bath electric lift and manual lift support, easy to use.
4. PTFE discharge valve, corrosion resistance, pollution-free.

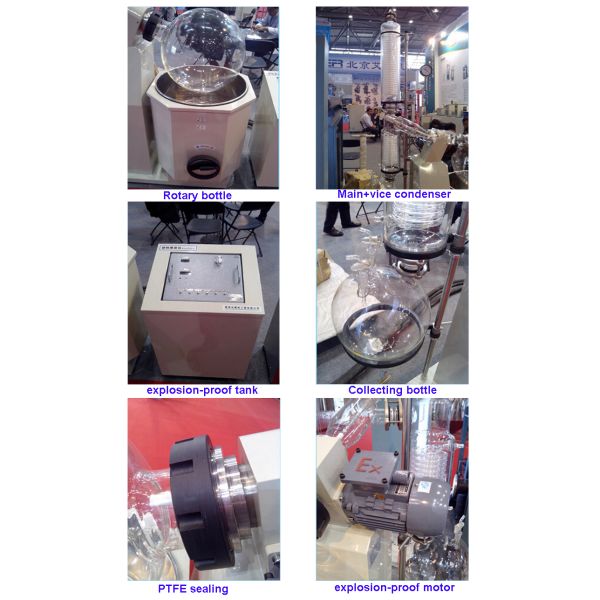

Details of 50L explosion-proof vacuum distillation ethanol:

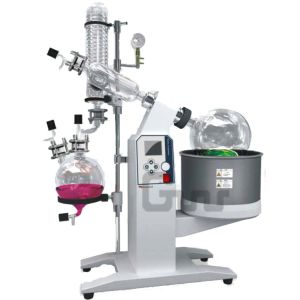

Specifications of rotary vacuum evaporator 5l/10l/20l/50l:
| Model | R1005 | R1010 | R1020 | R1050 |
| Rotary Bottle | 5L,diameter of flange opening: Φ50mm | 10L,diameter of flange opening:Φ95mm | 20L, diameter of flange opening:Φ125mm | 50L,diameter of flange opening:Φ125mm |
| Collecting bottle | 3L | 5L | 10L | 20L |
| Speed-regulation of main machine | Digital display, DC stepless speed-regulation |
| Rotary speed of main Machine | 20 to140r/min,digital display of rotary speed |
| Rotaring motor(W) | 250W |
| Condensing tube | Vertical type water refrigerating | Standing,main+auxiliary cooling and highly effcient3 circulating coldtrap |
| Heating boiler | stainless steel |
| Temperature control | Digital display, temperature control,0~99℃ |
| Achievable vacuum | 399.9Pa (below 3mmHg) |
| Evaporating capability | Water≥2L/h Alcohol≥4L/h | Water≥3.2L/h Alcohol≥6.5L/h | Water≥5L/h Alcohol≥11L/h | Water≥9L/h Alcohol≥19L/h |
| Elevating function | Electric elevation | Electric + manual elevation |
| Elevating stroke | 0~150mm | 0~160mm | 0~190mm | 0~180mm |
| Rated power supply | Single phase 220V/50Hz,60Hz | Three phase 380V/50Hz |
| Power of power supply | 2.3KW | 4.8KW | 6.3KW | 6.3KW |
| Dimensions(mm) | 835L*400W*1090H | 990L*550W*1655H | 1165L*600W*1775H |
|
|
5L/10L/20L/50L rotary vacuum evaporator price&brochure Images
|
