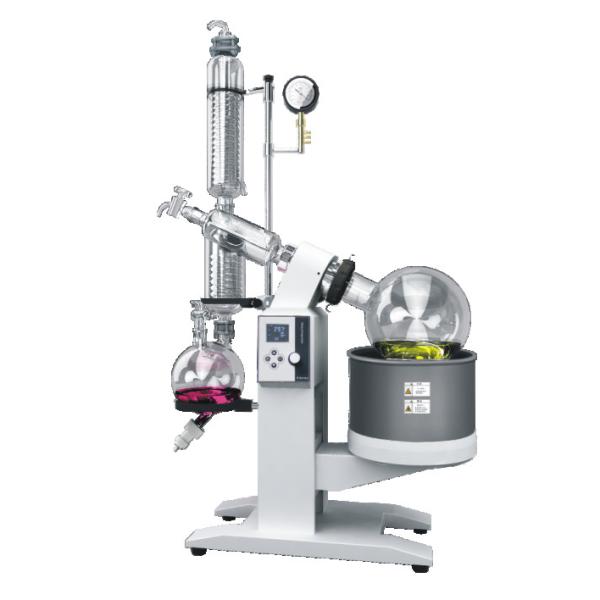

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Place of Origin : China

Brand Name : Greatwall

Certification : ISO 9001:2008

Model Number : R1010, R1010EX

MOQ : 1 sets

Price : US $2537 - 2984 / Unit

Packaging Details : Wooden box

Delivery Time : within 10 working days after receiving the payment

Payment Terms : T/T

Supply Ability : 200 sets/month

Contact Now

10L (Explosion-proof) Rotary Evaporator

Specifications:

1.ISO 9001:2008 Certification,one year warranty

2.Stainless steel water bath, temp.range:RT~99Celsius

3.PTFE sealing

Introduction:

Large scale, 10L evaporator for use in laboratory and manufacturing plant. Easy handling and practical usability have been the main purpose in designing every part.

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

R1010

Features:

•As drain valve is incorporated in receiver flask, evaporated solvents can be collected under reduced pressure.
•Many safety features are incorporated as standard. Overheat protector, leakage protector, dry-run protection, water bath over-temp shut-off protection, and fuse protection.
•Digital display of temperature and rotation speed.
•Stable up/down movement of the bath is implemented by motorized auto handle.
•Stainless steel water bath.
•Mechanical vacuum seal secures high level sealing.
•The opening of the flask is wide enough (95mm) for cleaning.

•Teflon(PTFE) and fluorous rubber double sealing.

•PID temperature controller for accurate and flexible temperature control.

Operation panel:

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Drain valve:

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Components:

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Explosion-proof model R1010EX:

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Specification:

Model	R1010		R1010EX
Rotary Bottle	10L,diameter of flange opening:Φ95mm
Collecting bottle	5L
Speed-regulation of main machine	Digital display, variable frequency, stepless speed-regulation
Rotary speed of main Machine	10to130r/min,digitaldisplay of rotary speed
Rotaring motor(W)	DC motor,power:250W		DC motor, power: 90w
Condensing tube	Type	Standing,main+auxiliary cooling and highly effcient3 circulating coldtrap
	Condensation area	Main condenser: 0.42m2 , Deputy condenser:0.22m2
Heating boiler	stainless steel water bath
Temperature control	Digital display, temperature control,0~99℃
Water bath Constant temperature precision	±1℃
Achievable vacuum	399.9Pa (below 3mmHg)
Evaporating capability	Water≥3.2L/h Alcohol≥6.5L/h
Elevating function	Motorized lifting		Manual lifting
Elevating stroke	0~160mm
Rated power supply	Single phase 220V/50Hz,60Hz
Power of power supply	4.8KW
Dimensions(mm)	920L550W1700H		-
Explosion-proof electric box dimensions(mm)	-		520L420W735H

System example:

10L Rotary Evaporator Standard Type R1010/ Explosion-proof Type R1010EX

Product

Type

Model

Rotary evaporator

10L Rotary evaporator

R1010

10L Explosion-proof rotary evaporator

R1010EX

Chiller
