5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

Place of Origin : China

Brand Name : Greatwall

Certification : ISO9001:2008

Model Number : R1005, R1005EX

MOQ : 1

Price : US $1,592 - 1,873 / Unit

Packaging Details : Wooden box

Delivery Time : within 10 working days after receiving the payment

Payment Terms : T/T

Supply Ability : 200 sets/month

Contact Now

5L (Explosion-proof) Rotary Evaporator

Specifications:

1.ISO 9001:2008 Certification,one year warranty

2.Stainless steel water bath, temp.range:RT~99Celsius

3.PTFE sealing

Introduction:

Large scale, 5L evaporator for use in laboratory and manufacturing plant. Easy handling and practical usability have been the main purpose in designing every part.

5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

R1005

Features:

•As drain valve is incorporated in receiver flask, evaporated solvents can be collected under reduced pressure.
•Many safety features are incorporated as standard. Overheat protector, leakage protector, dry-run protection, water bath over-temp shut-off protection, and fuse protection.
•Digital display of temperature and rotation speed.
•Stable up/down movement of the bath is implemented by motorized auto handle.
•Stainless steel water bath.
•Mechanical vacuum seal secures high level sealing.
•The opening of the flask is wide enough (95mm) for cleaning.

•Teflon(PTFE) and fluorous rubber double sealing.

•PID temperature controller for accurate and flexible temperature control.

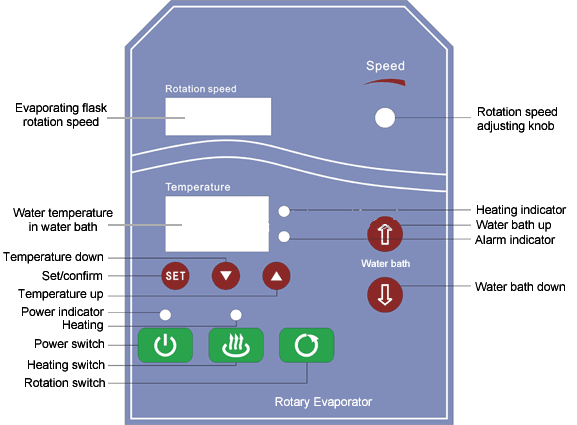

Operation panel:

5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

Drain valve:

5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

Explosion-proof model R1005EX:

5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

Specification:

Model	R1005		R1005EX
Rotary Bottle	5L,diameter of flange opening:Φ50mm
Collecting bottle	3L
Speed-regulation of main machine	Digital display, variable frequency, stepless speed-regulation
Rotary speed of main Machine	10to140r/min,digitaldisplay of rotary speed
Rotaring motor(W)	AD induction motor, power:40w
Condensing tube	Type	Vertical type water refrigerating
	Condensation area	0.27m2
Heating boiler	stainless steel water bath
Temperature control	Digital display, temperature control,0~99℃
Water bath Constant temperature precision	±1℃
Achievable vacuum	399.9Pa (below 3mmHg)
Evaporating capability	Water≥2L/h Alcohol≥4L/h
Elevating function	Motorized lifting		Manual lifting
Elevating stroke	0~150mm
Rated power supply	Single phase 220V/50Hz,60Hz
Power of power supply	2.2KW
Dimensions(mm)	765L400W1070H		-
Explosion-proof electric box dimensions(mm)	-		520L420W735H

System example:

5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX

Product

Type

Model

Rotary evaporator

5L Rotary evaporator

R1005

5L Explosion-proof rotary evaporator

R1005EX

Chiller

-10℃ Low temp. circulator

DL10-1000

-30℃ Low temp. circulator

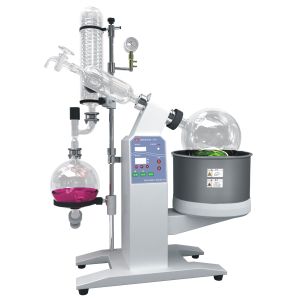

Quality 5L Rotary Evaporator Standard Type R1005/ Explosion-proof Type R1005EX for sale
